TM400 Big Base Tractor Hydraulic Log Splitter

(3 customer reviews)

Features

The TM400 range of log splitters are suitable for most tractors. The splitter fits to a standard rear three-point linkage tractor and only requires a hydraulic power supply and a free flow return.

  • Big base acts like a table. Can be lifted up on the links to make splitting easier
  • 14 l/m oil flow minimum needed
  • 10 tonne splitting force
  • The splitting wedge is specially forged, hardened and is double chamfered to give the best splitting action available on the market
  • Suitable for all tractors with ISO CAT 1 and CAT 2 linkages; including low HP compact tractor and large high horsepower tractors
  • The unit can be fitted on the front or rear three-point linkage
  • For added safety, all the hydraulic pipes are covered in anti-burst lagging and both hands are required on the lever to operate the ram. Lifting the lever will power the splitting wedge through the logs and lowering the lever will retract the ram
  • Capable of splitting logs up to 18 inches high and is not limited to the width of logs it can split
  • 20Hp minimum

log-splitter

OVERVIEW

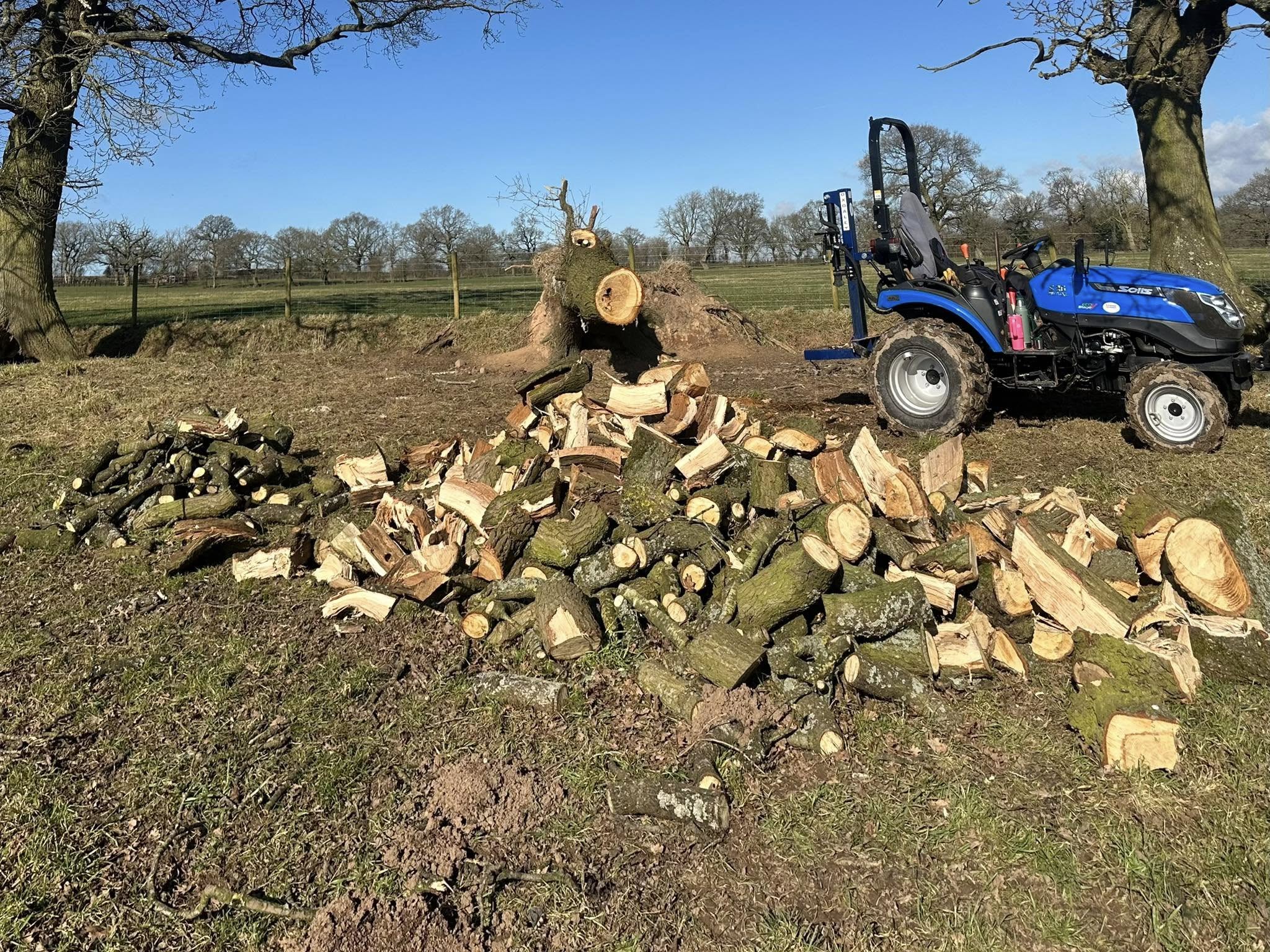

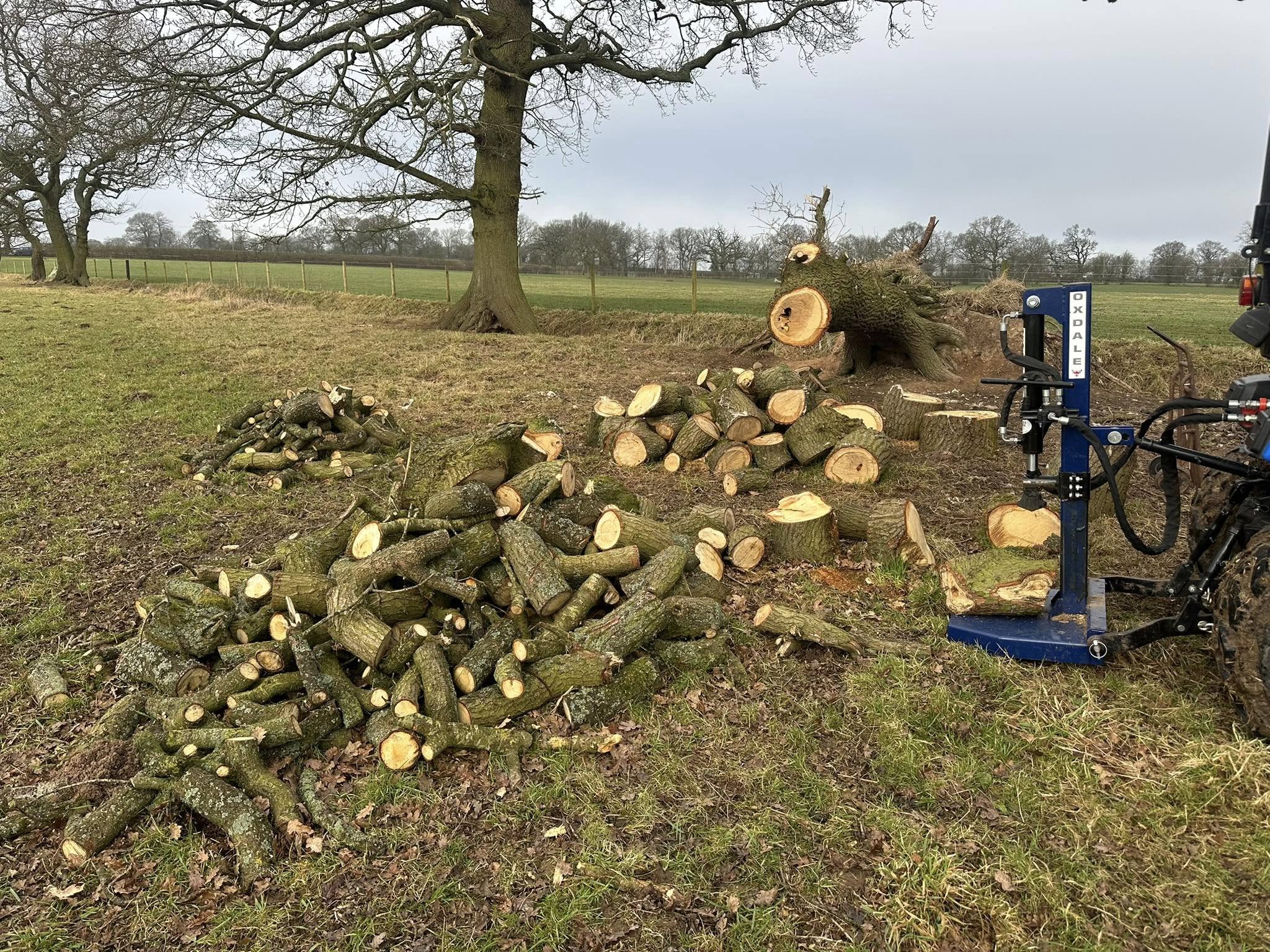

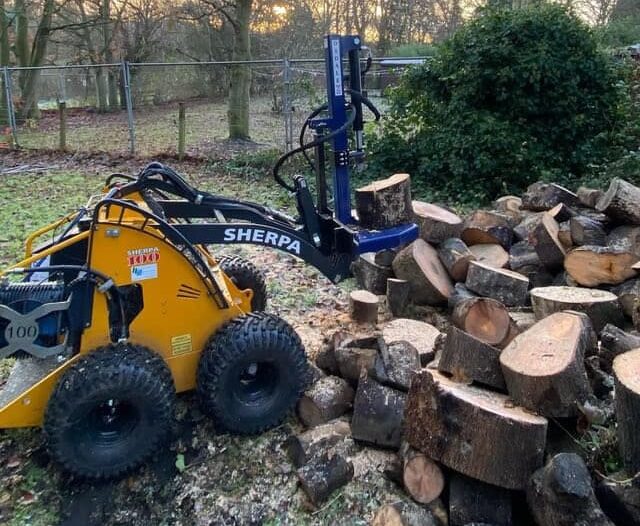

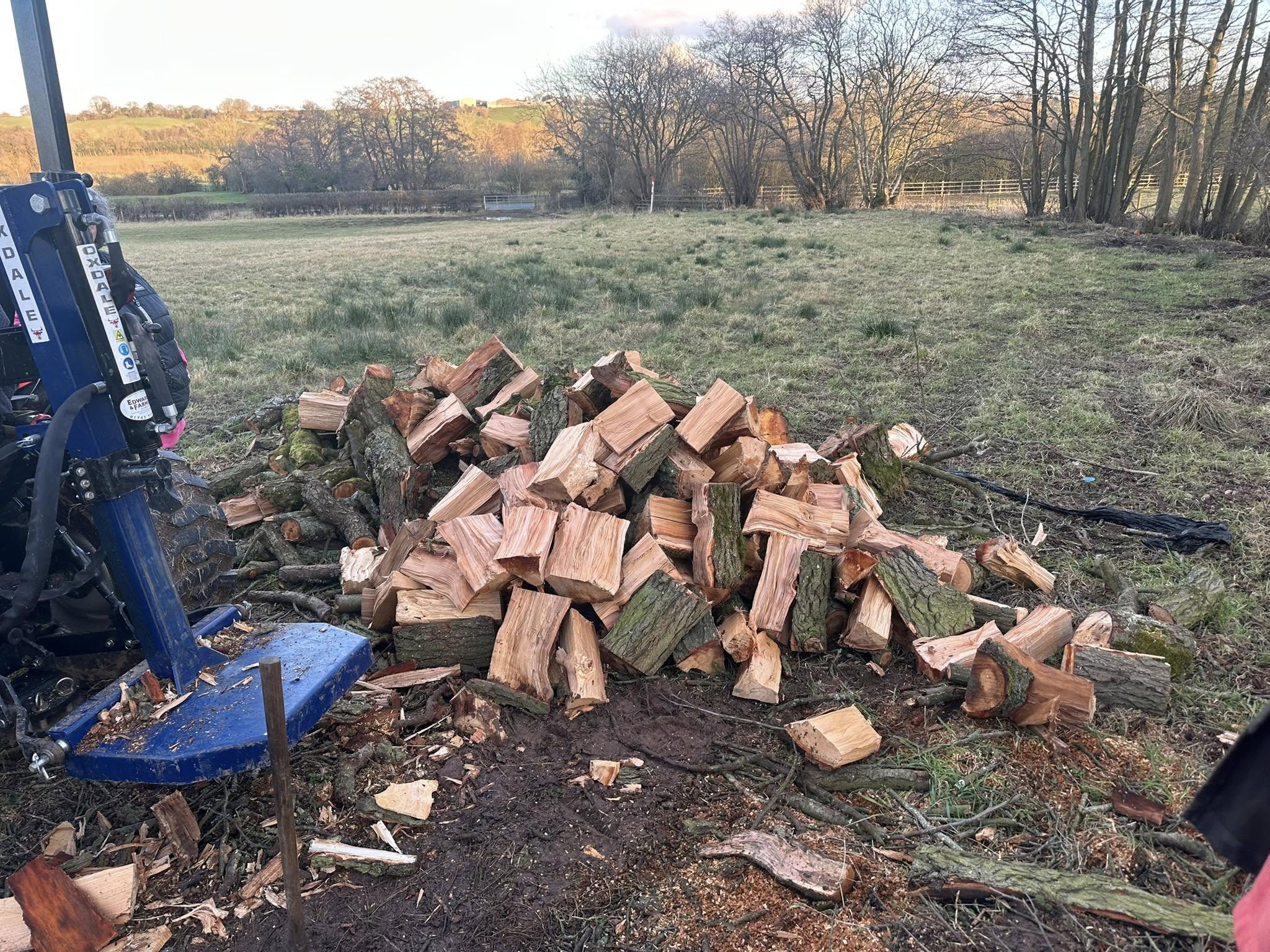

Discover the Versatility of the TM400 Tractor Hydraulic Log Splitter

The TM400 range of log splitters is tailored for most tractors, seamlessly fitting onto a standard rear three-point linkage tractor with just a hydraulic power supply and a free flow return. With over 12 years of manufacturing experience, Oxdale has established itself as a trusted name, with over 10,000 units operating across the UK and Europe.

What sets the TM400 apart is its versatility. Users have the flexibility to operate the machine at ground level for larger diameter rounds or raise it to a comfortable waist height for easier handling of logs. With a minimum oil flow of 14 l/m required, the TM400 delivers efficient splitting operations with its unique axe head design, enabling a quick 10-ton capacity ram fitting for swift splitting.

Featuring a Big Base that acts like a table, users can lift it on the links for enhanced splitting convenience. Compatible with all tractors featuring ISO CAT 1 and CAT 2 linkages, including low HP compact tractors and large high horsepower tractors, the TM400 offers unmatched versatility in attachment options, fitting seamlessly on both front and rear three-point linkages.

Safety is prioritized with anti-burst lagging covering all hydraulic pipes, while dual-hand operation ensures optimal control during operation. Capable of splitting logs up to 18 inches high without limitations on width, the TM400 Tractor Hydraulic Log Splitter is the ideal choice for efficient and safe log splitting operations, requiring a minimum of 20Hp for operation.

The splitter can be seen operating on a Kubota M6040 in the video below.

SPECIFICATIONS

REVIEWS

3 reviews for TM400 Big Base Tractor Hydraulic Log Splitter

  1. Nigel Macey

    I bought a tractor mounted a log splitter about 5 years ago. I run it from a David Brown 880. The splitter has done many hours splitting and has been abused splitting some very challenging wood. It has given us no trouble. Fantastic piece of kit.

  2. Andy Parsons

    Have one of these splitters super value and great build quality three years later still prefect

  3. Pembs Wood Recycling

    I’ve had an oxdale tractor mounted splitter for four years. We see 150m3 a year.
    It has only failed once – a spring in the spool valve – they sent one out free of charge. Very quick to use when you get good at it, I can do three cube of loose logs an hour. Highly recommend the splitters and the company
